Parameter

Rating

Contact Form

A type (normal open) contact

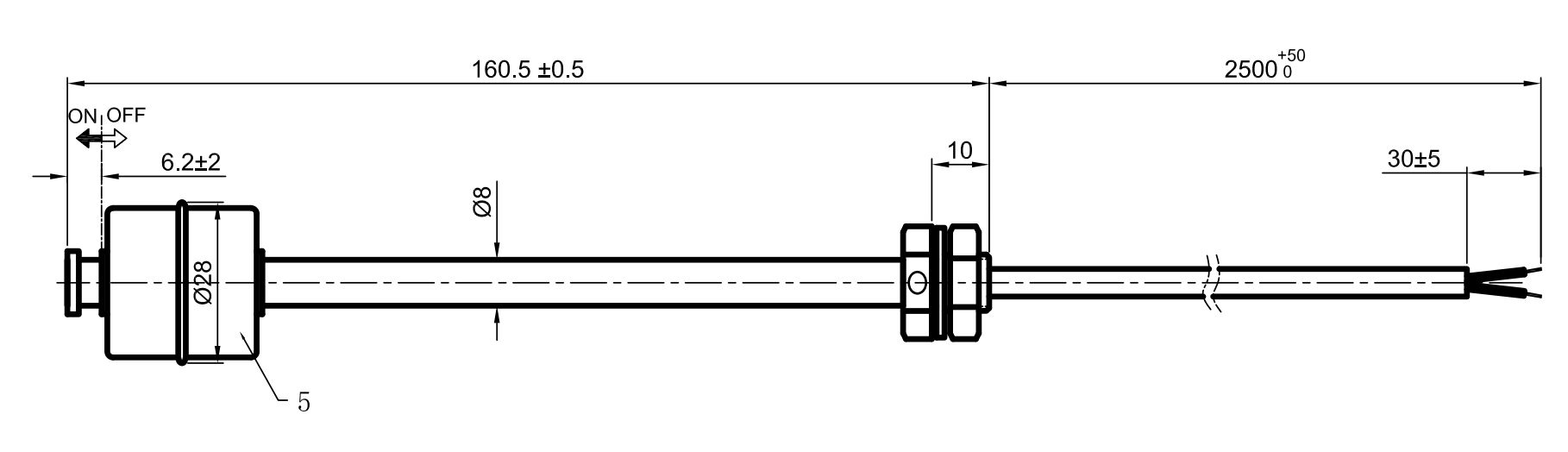

Sensor Working Distance ON

6.2± 2 mm

Sensor Working Distance OFF

≥10mm

Max. Contact Rating

10W

Max. SwitchingVoltage

DC 100V

Max. Carrying Current

DC 0.5A

Max. Switching Current

DC 1.0A

Initial Contact Resistance

700mΩ Max

Insulation Resistance

108ΩMin. (DC 500V)

Breakdown Voltage

DC250V Min.(Cut-off Current 1mA,in 1 minute)

Electrical Life

106operations Min. (DC 100V, 0.1A，Load R)

Shock Resistance

30G Max

Vibration Resistance

Vibration frequency of 10~55Hz. Amplitude of 1.52mm at(X, Y, Z) 3 directions, 2hours.

Wire Strength

The wire is hanging a weight of 3 kg for 1 minute or above. The wire should not be come out.

Mechanical Life

107operations Min.（No load）

Operating Temperature

-10℃~ +80℃.

Operating Liquid

Water、oil

Operating Humidity

RH 95% Max
