Automotive Field

Due to the importance of human life safety, automotive products have very strict standards, and the automotive industry has its own dedicated quality management system. Shengdele Company has a dedicated automotive sensor research and development team that operates according to the IATF16949 system standard. Based on its rich experience and strong research and development testing capabilities in the field of automotive sensors, Shengdele has become a supplier for many famous brands of cars such as Mercedes Benz, Volkswagen

Contact Us

Related Products

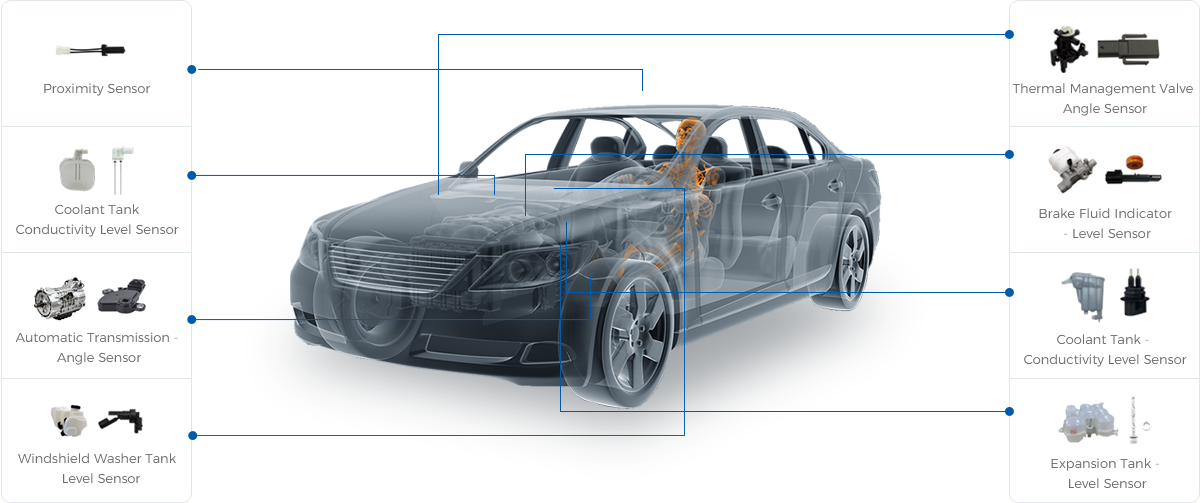

Application

Product Type

Function

Key Figures


Automotive Braking System

Liquid Level Sensor

Detects the brake fluid level and transmits this signal to the electronic control unit; Issues a warning when the brake fluid level is low, indicating that brake fluid needs to be replenished.

Contact Type: Type A Contact (Normally Open)
Closing Operating Distance: 3.3 – 5.3mm
Opening Operating Distance: 4.1 – 7.8mm
Mechanical Life: Over 720,000 cycles (no load)
Operating Temperature: -40°C to +120°C

Automotive Thermal Management System

Detects the brake fluid level and transmits this signal to the electronic control unit; Issues a warning when the brake fluid level is low, indicating that brake fluid needs to be added.

Angular error of voltage conversion: ±3.5°
Connector pull force: ≥80 NMin
Operating temperature range: -40°C to 100°C
Mechanical life: Over 720,000 cycles

Automotive Windshield Wiper System

Liquid Level Sensor

Detects the level of windshield washer fluid and transmits this signal to the electronic control unit; when the fluid level is low, it issues a warning prompting the addition of more washer fluid.

Contact Type: Type A Contact (Normally Open)
Closing: 10° ± 5°
Opening: 20° ± 15°
Mechanical Life: Over 10⁵ cycles (no load)
Operating Temperature: -18°C to +95°C

Automotive Transmission

Gear Position Sensor

Used to detect the transmission gear position, it continuously transmits transmission gear position data to the vehicle's ECU, enabling the ECU to monitor the current transmission gear position in real time for comprehensive vehicle control.

Rated Voltage: 12V ±0.5V
Response Time: 2ms
Angle Acquisition Time: 190μs
Output Accuracy: 0.25%

Automotive coolant

Conductive Sensor

Detects the coolant level and transmits this signal to the electronic control unit; When the coolant level is low, it issues an alert indicating the need to add coolant.

Color: Natural
Plastic Material: PP
Probe Material: SUS304
Operating Temperature: -40°C to +125°C

Proximity Sensor

The fuel tank door switch detector consists of a reed switch and a magnet; it detects the fuel tank door switch and triggers an alarm.

Contact Type: Type A Contact (Normally Open)
Closing: 10° ± 5°
Opening: 50 mm Max
Mechanical Life: Over 10⁵ cycles (no load)
Operating Temperature: -10°C to +80°C

Car Air Compressor

Liquid Level Sensor

Used to detect the coolant level and transmit this signal to electronic control components in new energy vehicles; When the coolant level is low, it issues an alert indicating the need to add coolant.

Maximum Operating Voltage: 200V DC
Rated Power: 0.6W
Resistance Tolerance: ±5%
Operating Temperature: -40°C to +125°C
Mechanical Life: Over 10⁶ cycles (no load)

Automotive coolant

Conductive Sensor

Detects the coolant level and transmits this signal to the electronic control unit; When the coolant level is low, it issues an alert indicating that coolant needs to be added.

Color: Black
Plastic Material: PP
Probe Material: SUS304
Operating Temperature: -40°C to +125°C
