Characteristics
|
Parameter
|
Rating
|
|
Electrical characteristics :
|
1-1. Power Requirement
|
24V DC
|
|
1-2. Output Signal
|
Relay Output
|
|
1-3. Detection Object
|
Tap water
|
|
1-4. Detection Output Status
|
Relay output is closed, and LED willturn on when in of the detectionsensitivity specification.
|
|
1-5. Detection Output Status
|
Relay output is open, and LED will turnoff when out of the detectionsensitivity specification
|
1-6. Detection sensitivity（For theset testing station）
|
Center line：-3mm,+6mm
|
|
1-7. Working current
|
50mA
|
|
Mechanical characteristics：
|
1-8. Waterproof level
|
IP67
|
|

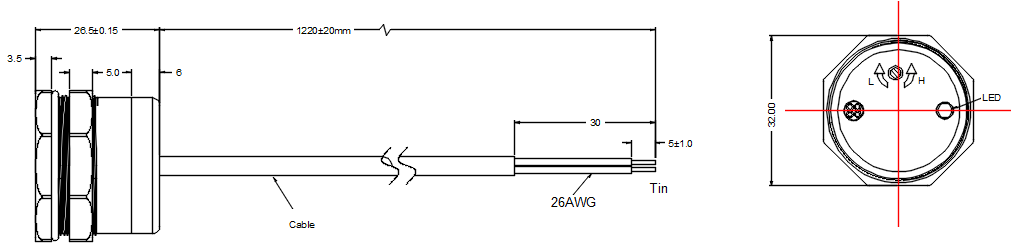

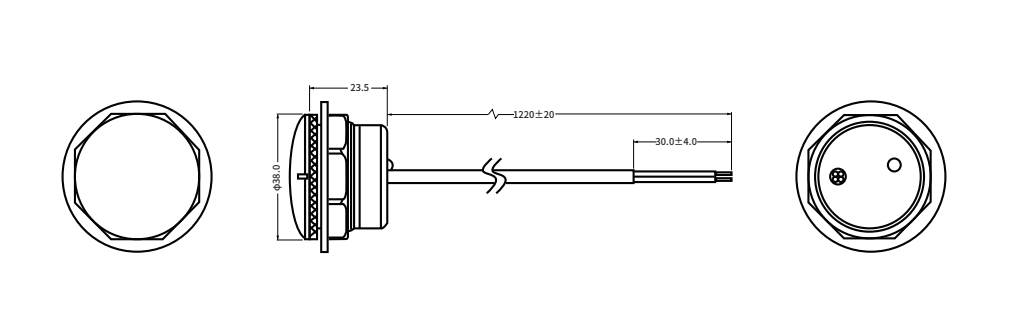

1-9. Line length
|
4 FT
|
|
Operating Condition：
|
1-10. Temperature of the liquid
|
0 - 60°C
|
|
1-11. Storage temperature
|
0 - 70°C
|
|
1-12. Service
|
Compatible with all kinds of water quality
|
