Parameter

Rating

Contact Form

A type (normal open) contact

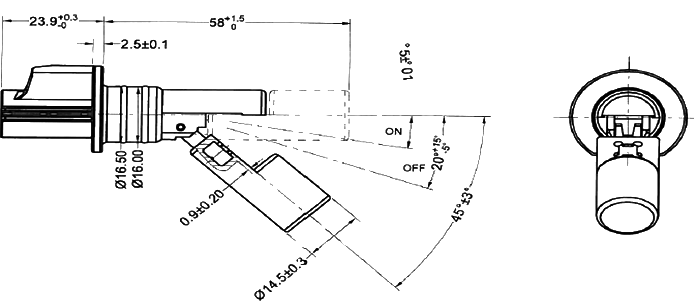

Sensor ON

10 °± 5°

Sensor OFF

20°+ 15/-5°

Max. Contact Rating

10W

Max. SwitchingVoltage

AC 150V

Max. Carrying Current

DC 1.0A

Max. Switching Current

DC 0.5A

Initial Contact Resistance

100 mΩ Max

Insulation Resistance

108ΩMin. (DC 500V)

Breakdown Voltage

DC250V Min.(Cut-off Current 1mA,in 1 minute)

Electrical Life

106 operations Min. (DC 100V, 0.1A，Load R)

Shock Resistance

30G Max

Vibration Resistance

Vibration frequency of 10 ~ 55Hz.Amplitude of 1.52 mm at (X, Y, Z), 3directions, 2hours.

Mechanical Life

106 operations Min.（No load）

Operating Temperature

-18℃ ~ +95℃

Operating Humidity

RH 95% Max
